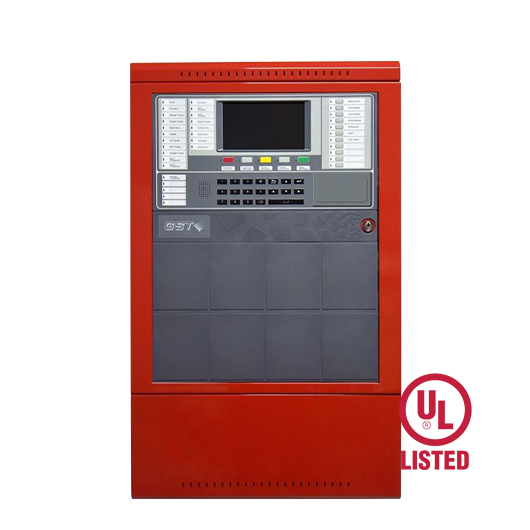

Model: IFP4M
Wide range power supply
History records of 100,000 events
CAN/Fiber Networking, Panel grouping
7-inch Touch Screen 800 x 480

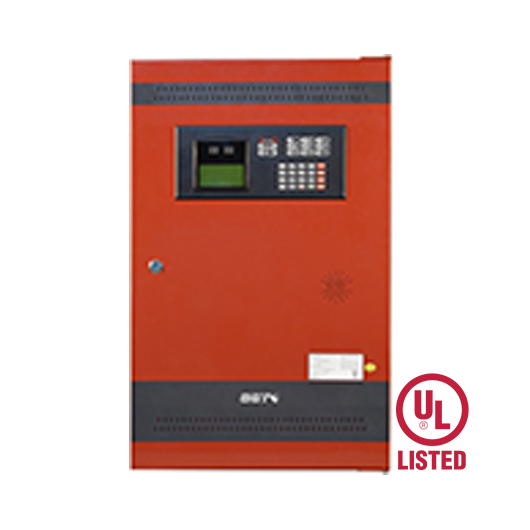

Model: GST-M200
Single loop fire alarm control panel
Optional 2 loops with additional loop card
Notification Appliance Circuits (NAC)
Programmable from panel
Model: GST-MNA2C
Capacitive Touch screen
Class A CAN network interface
History file 100,000 events capacity
User programmable password

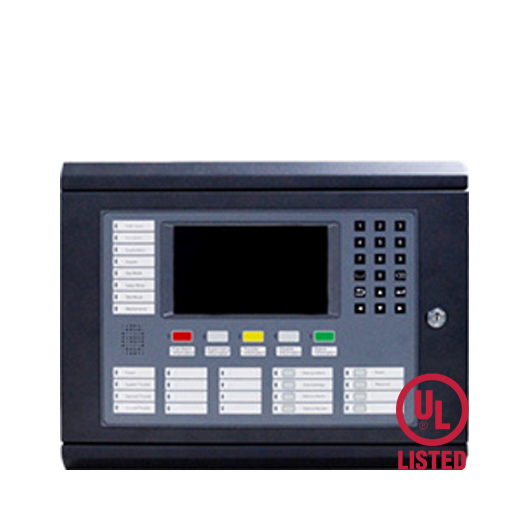

Model: GST-MNA2F
Fiber network interface
History file 100,000 events capacity
Capacitive Touch screen
User programmable password
Model: DI-M9101
Address can be set in field
Fault self-diagnostic
Reed switch testing
Polling LED can be set to close
Model: DI-M9102
Fault self-diagnostic
A magnet test available
Polling LED can be set to OFF
Built-in microprocessor stores
Model: DI-M9103
Address can be set in field.
Fault self-diagnostic.
Reed switch testing.
Polling LED can be set to OFF

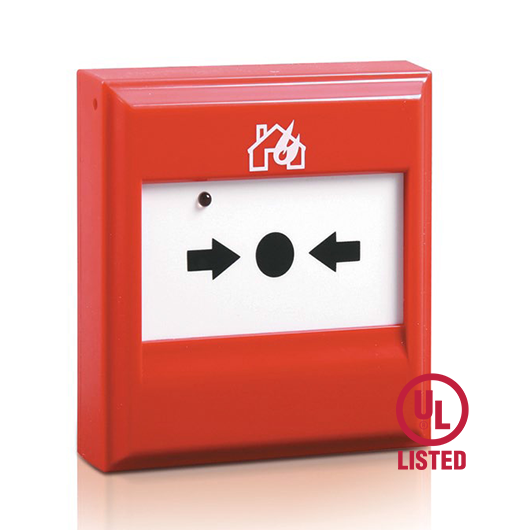

Model: DI-M9204
Plug-in structure
Alarm by pressing
Electronically addressed
Wiring before termination

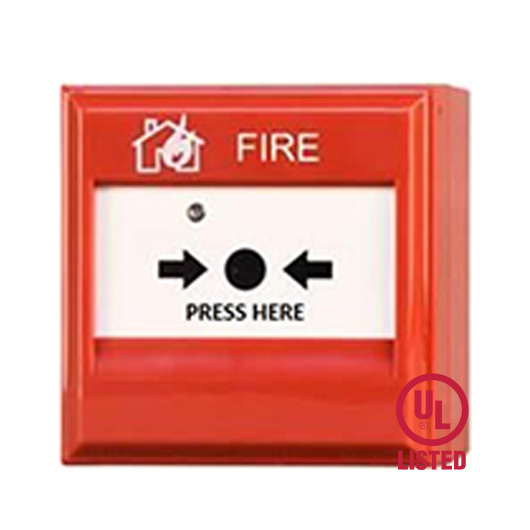

Model: DI-M9204F
Plug-in structure
Alarm by pressing
Electronically addressed
Wiring before termination

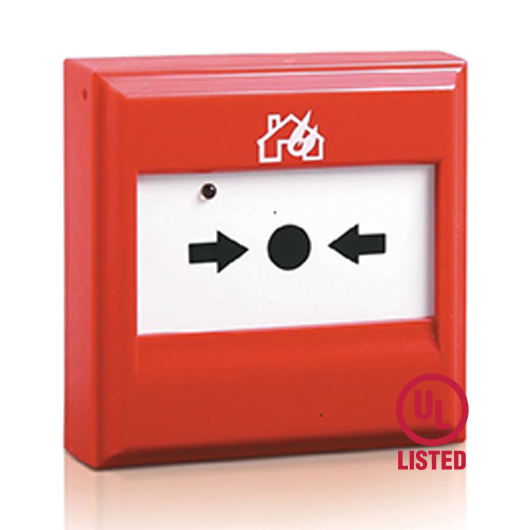

Model: DC-M9204
Alarming by pressing
Plug-in structure
Semi-flush or surface mount installation
Model: GST-MNA2F
Alarming by pressing
Plug-in structure
Semi-flush or surface mount installation

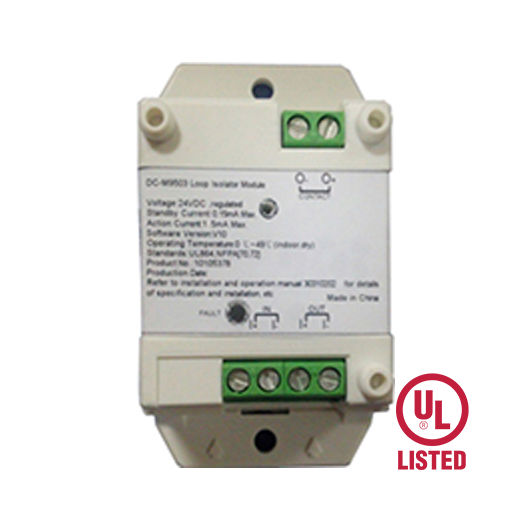

Model: DC-M9503
Din-Rail mount, Surface mount
LED status indication
Support Class A SLC loop
UL Approved

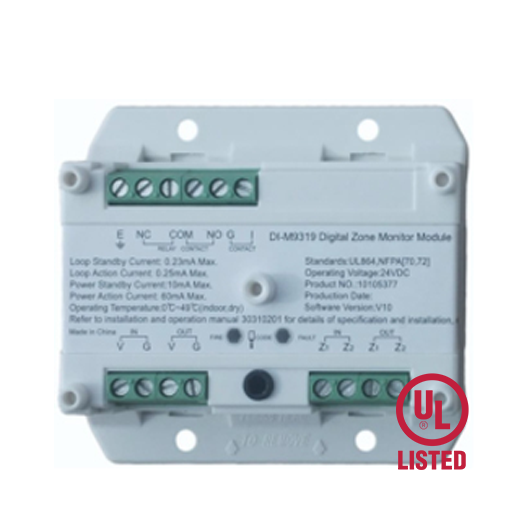

Model: DI-M9319
Input port cable monitoring with 4.7KΩ EOLR
Two indicators for fire and fault.
LED status indication

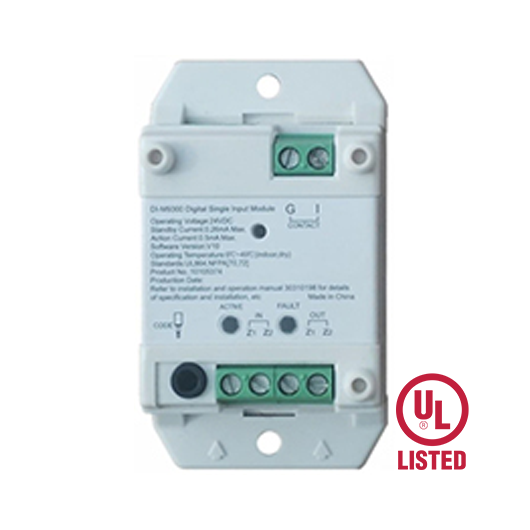

Model: DI-M9300
Input port monitored with 4.7KΩ EOLR.
Normally open or closed contact acceptable
LED status indication

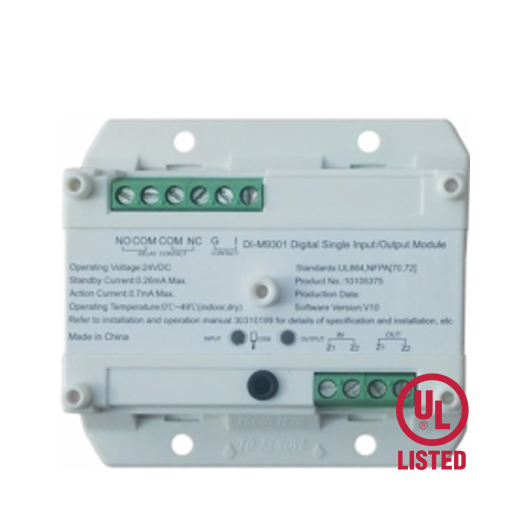

Model: DI-M9301
Input port monitored with 4.7KΩ EOLR.
Normally open or closed contact acceptable
LED status indication

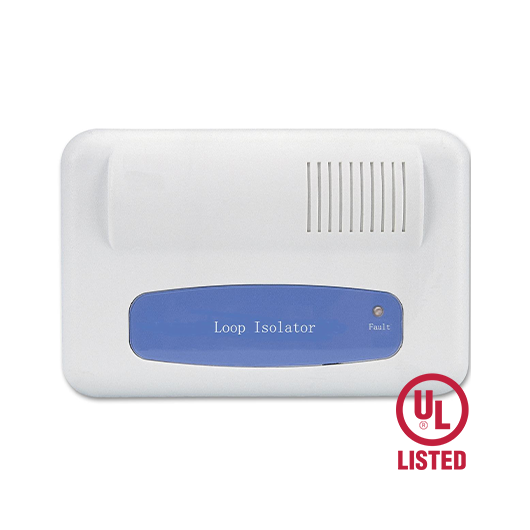

Model: C-M9503
Polarity-sensitive external connections.
Delayed power-up to output end devices
Avoids strong transient..

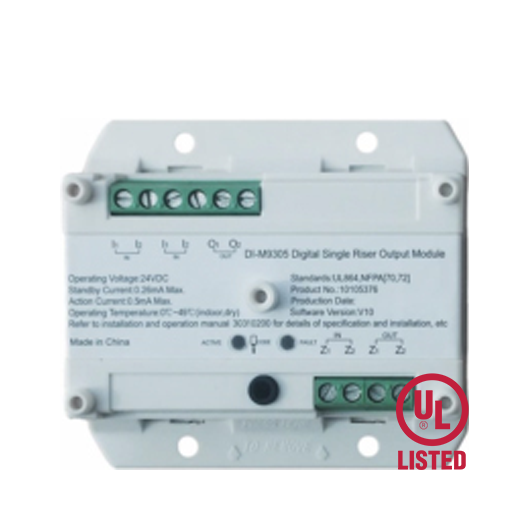

Model: DI-M9305
Output port monitored with 47KΩ EOLR.
Electronically addressed
LED status indication
Model: DC-M9504
Technical Specifications
Operating Voltage: 24V
Standby Current ≤0.15mA
Action Current≤ 2mA

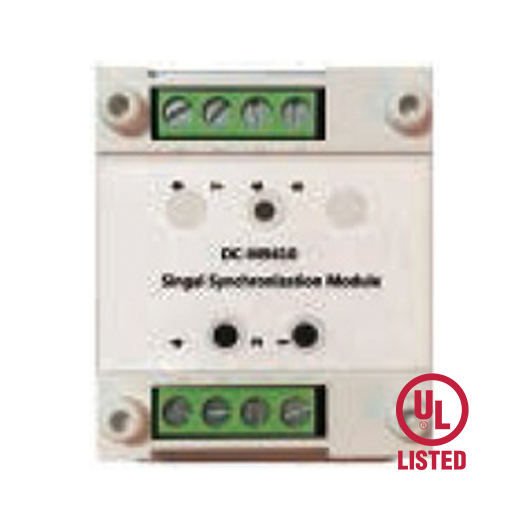

Model: DC-M9410
Small in size
Can be installed into single-gang box
Compatible electrical boxes
Model: DC-M9101
Reed switch testing.
Remote indicator output available.
2 levels smoke sensitivities programmable
Relative Humidity: 95%, non-condensing
Model: DC-M9102
Providing for connections to remote indicators
A magnet test available
Operating voltage: 24VDC(16VDC~28VDC)
Relative Humidity: 95%.

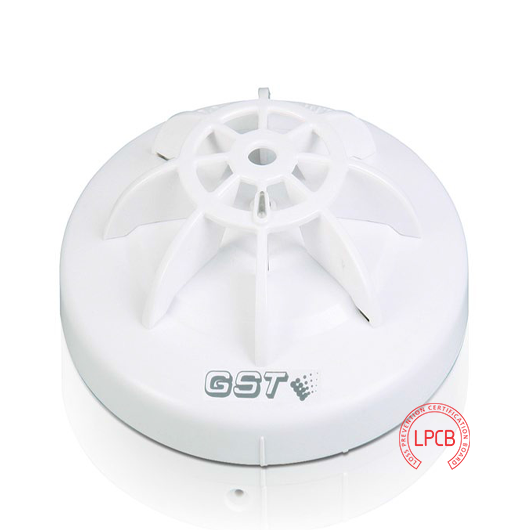

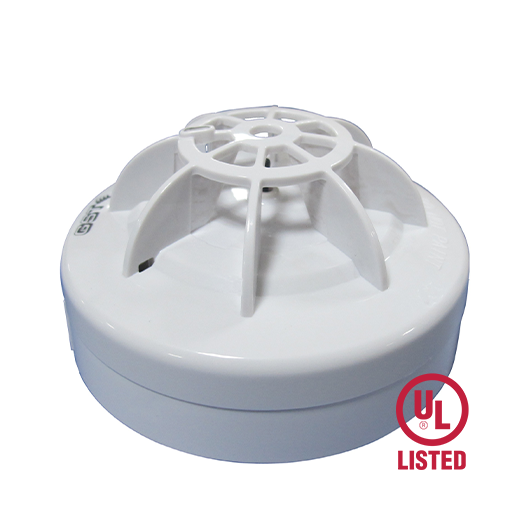

Model: DC-M9103
Reed switch testing
Output terminal for remote indicator available
Rate of rise and fixed temperature
Fixed temperature programmable
Model: DC-M9413
Features & enhanced synchronization circuit
Field-configurable option
Switch for desired candela output
Model: DC-M9414
Temporal or steady sounder output
High dB or low dB output
Designed for indoor use.
Operation Voltage 24 VDC
Model: DC-M9415
Temporal or steady sounder output
High dB or low dB output
Designed for indoor use.
Operation Voltage 24 VDC
Model: DC-M9416
Features & enhanced synchronization circuit
Field-configurable option
Switch for desired candela output

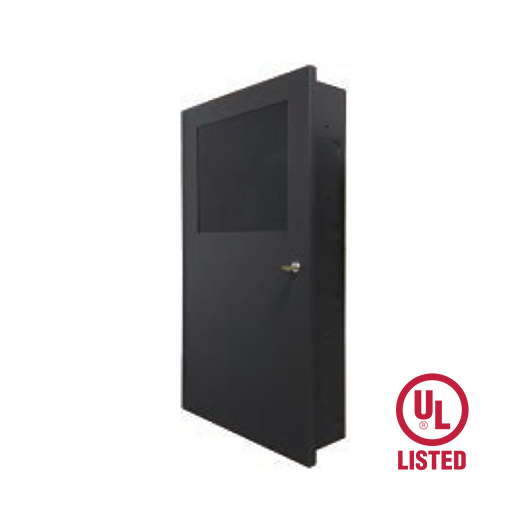

Model: GST-MP
Panel of GST voice evacuation system
provides interface to the FACP
2 models of basic master panels

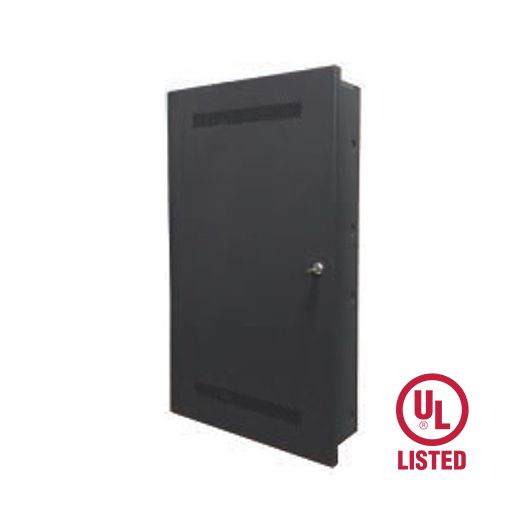

Model: GST-DP
Communications: RS-485 Standard
Primary Supply: 220VAC
Electrical Ratings: All Circuits @ 24VDC
End of Line Resister: 0kΩ

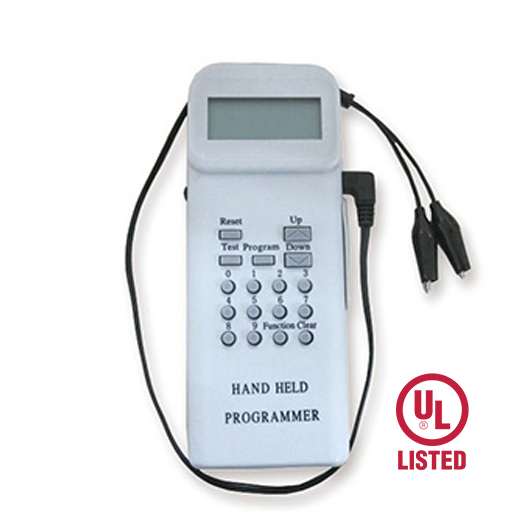

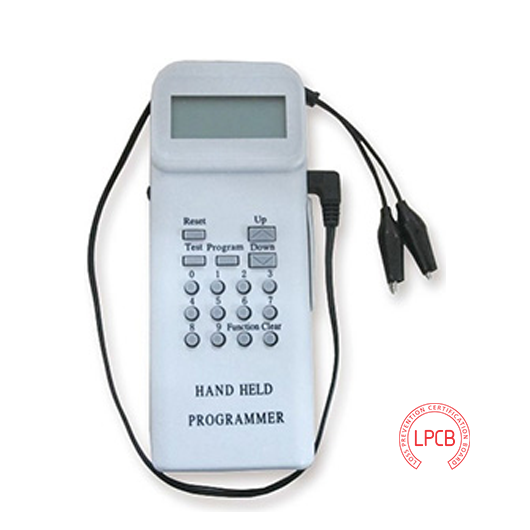

Model: P-9910B
Hand held unit, portable tool
Convenience operation
Quadruple digit alphanumeric LCD
Low battery indication
Model: C-9314P
LED indication available.
Built-in current-limiting resistor.
Operating Voltage 2.0VDC - 3.0VDC
Operating Temperature:

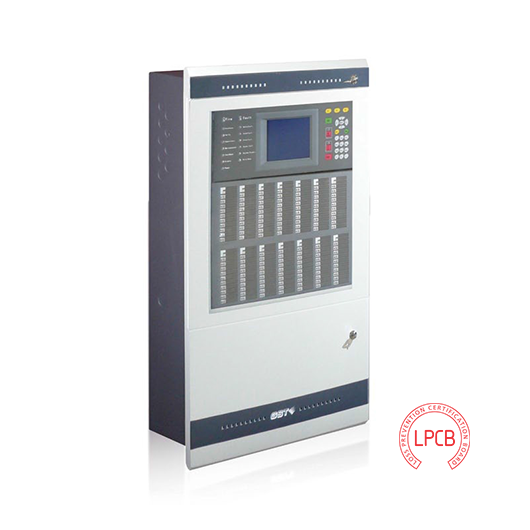

Model: GST-IFP8
Day and Night Mode
Enable and Disable function
40 x15 lines LCD Display
Duplicate Address Checking

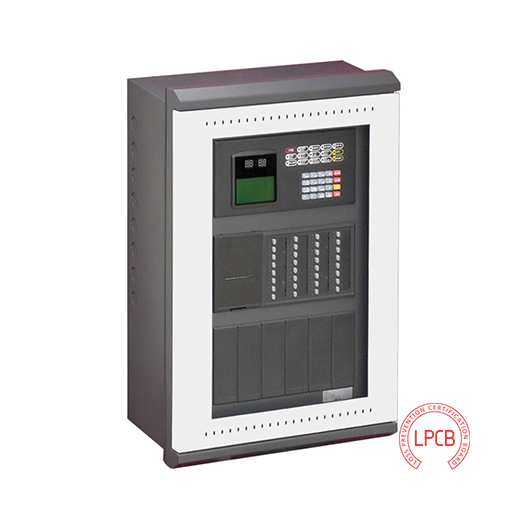

Model: GST200N
30 logical configurable zones
PAS and Acknowledge Function
Dirty Detector Reporting
Graphical LCD Display

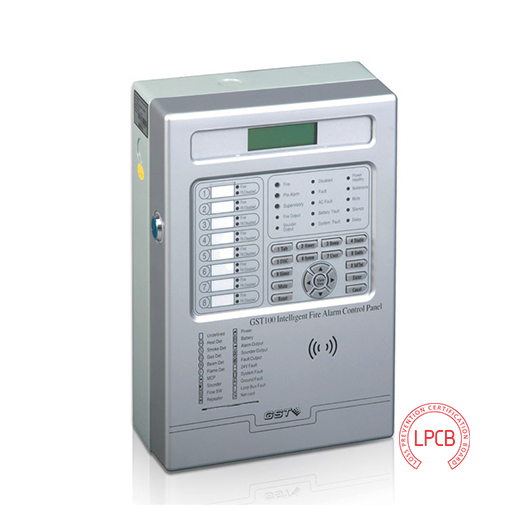

Model: GST100
Single loop addressable panel
Can connect up to 128 addressable devices
Self configurable via panel keyboard
Graphical LCD Display
Model: DI-9101E
Electrically addressed
Self-diagnostic
Possible to switch off pulling LED
Model: DI-9102E
Three sensitivity levels
Electronically addressed
Aesthetically pleasing Low profile design
Dust / corrosion / humidity resistant
Model: DI-9103E
Electrically addressed
3 classes programmable
LED for 360° vision
Model: I-9104
Three sensitivity levels
Electronically addressed
Aesthetically pleasing Low profile design
Dust / corrosion / humidity resistant

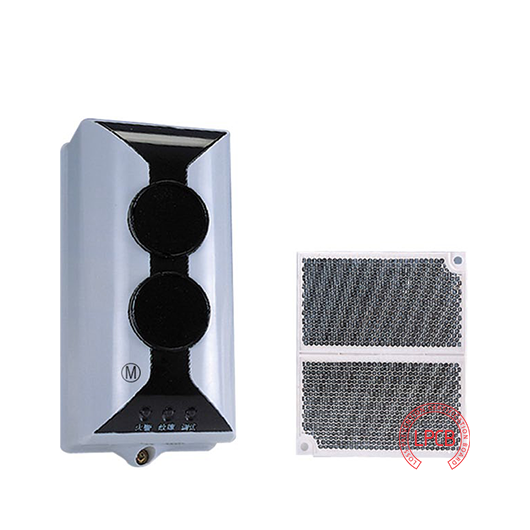

Model: I-9105R
Range 8 -100 Meters
Maximum width: 14m
Two sensitivity levels
Ideal for Atriums, Warehouses etc.
Model: I-9602LW-NG/LPG/CG
Available for LPG, Natural Gas and Coal Gas
Built-in 2 relay contacts
Alarm, Fault, Power indication
Electronically addressed

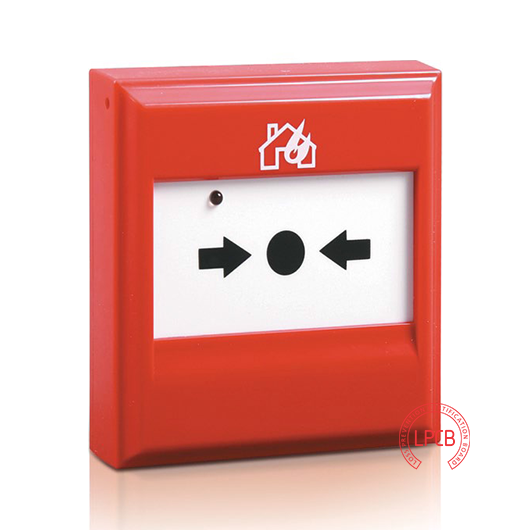

Model: DI-9204E
Advanced digital communication
Friendly installation and test
Surface mount, Semi-flush mount
Re-settable (non-breaking glass) via special key.
Model: I-9401
Electronically addressed
Plug-in construction
Standby Current 0.8mA, Alarm Current 6.0mA
Standby Current 10mA, Alarm Current 160mA
Model: I-9402
Loop Powered
Electronically addressed
Standby Current≤ 1mA
Alarm Volume (SPL): 89dB @1 Meter
Model: I-9403
16 programmable alarm tones
Power saving mode or Normal mode
Electronically addressed
Comply with EN54-3

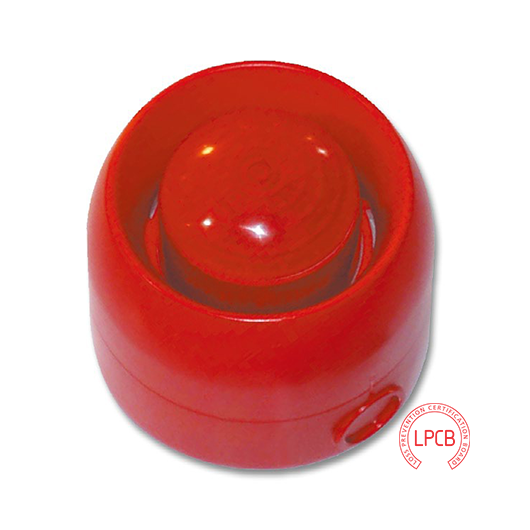

Model: I-9404
16 programmable alarm tones
Single or dual address programmable
loop powered or external 24VDC powering
Electronically addressed
Model: I-9406
Sandwich structure
16 programmable tones
Three working modes
Electronically addressed

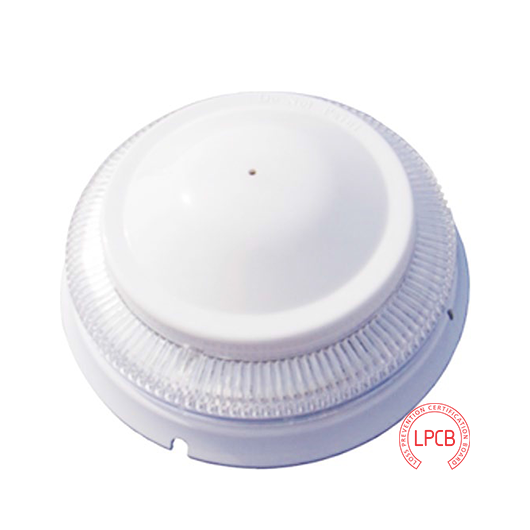

Model: DI-9406
16 programmable tones
Electronically addressed
Technical Specifications
Tone 14 and Tone 16 are EN54-3 compliant

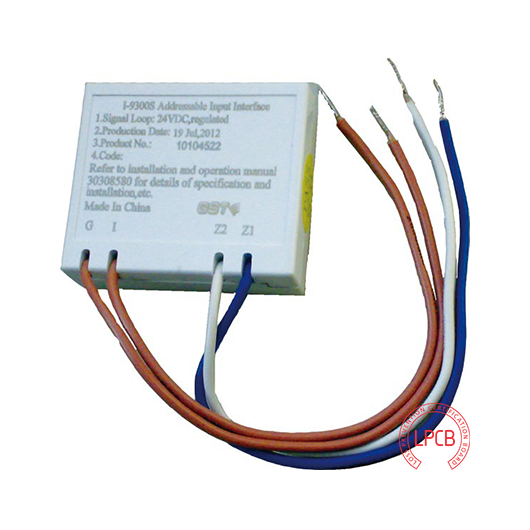

Model: I-9300S
Electronically addressed
EOLR is used for cable monitoring
Possible monitoring NO or NC dry input
Operation Voltage: Loop 24VDC

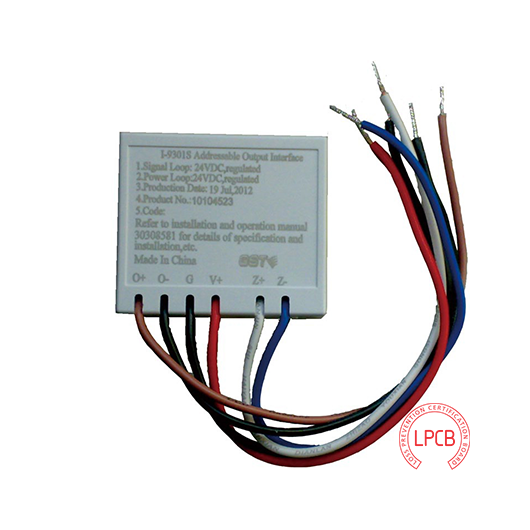

Model: I-9301S
Output cable checking
Electronically addressed
Standby Current: Loop≤ 1mA, Power≤1.5mA
Dimension: 50mm x 44mm x 17mm

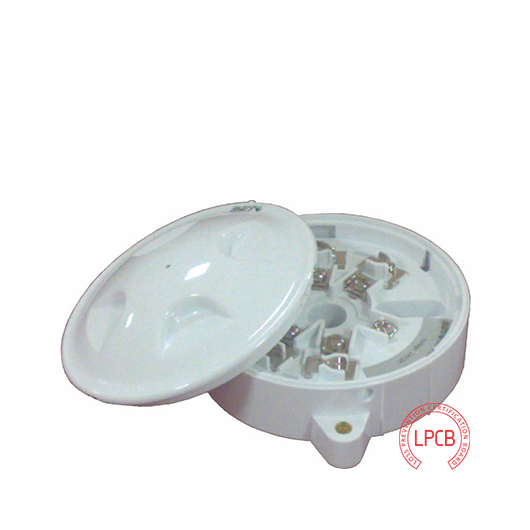

Model: DC-9504E
LED status indicator
Remote indicator output
Compatible with DI series detector
Relative Humidity: 95% non condensing

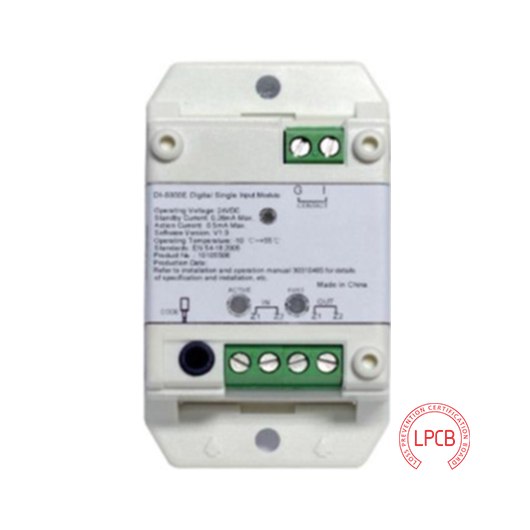

Model: DI-9300E
Standard: EN 54-18:2005
Din-Rail mount or surface mount
LED status indication
loop Powered

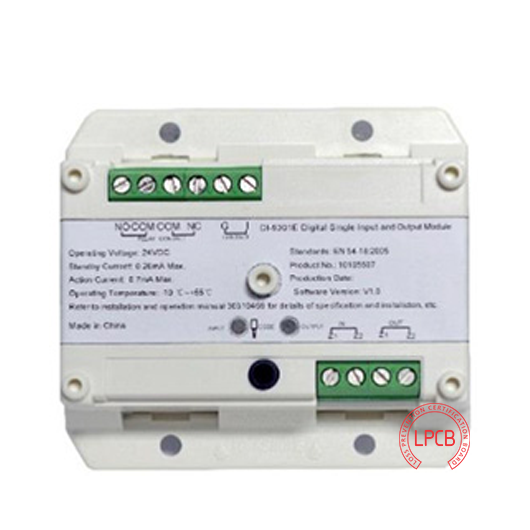

Model: DI-9301E
LED status indication
Din-Rail mount, Surface mount
Action Current≤ 0.7mA
Temperature: -10°C - +55°Cbr/>

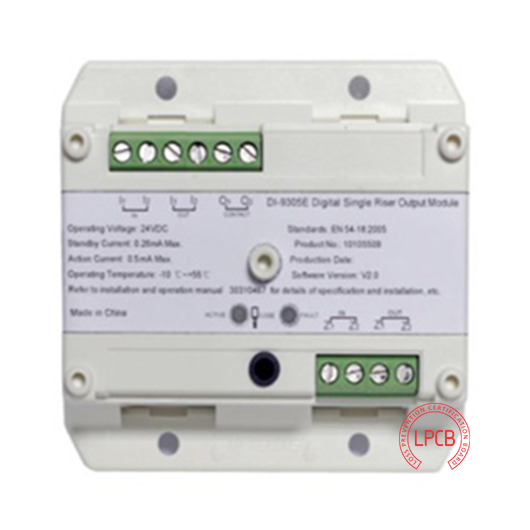

Model: DI-9305E
Input port monitored
Din-Rail mount, Surface mount
Standard: EN 54-18:2005
Dimension: 85.3mm×78mm×33mm

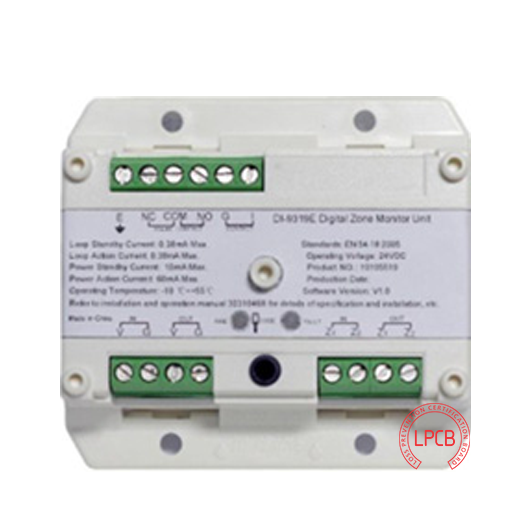

DI-9319E
Monitoring power supply.
Two indicators for fire and fault.
Din-Rail mount or surface mount
Dimension: 85.3mm×78.0mm×33.0mm

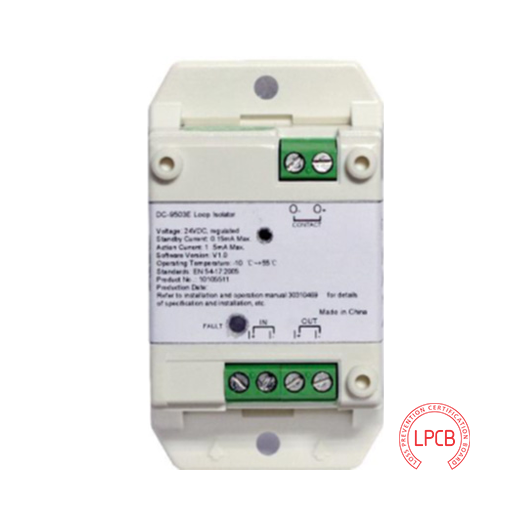

Model: DC-9503E
Din-Rail mount, Surface mount
LED status indication
Standard: EN 54-17:2005
Dimension: 78mm×45.3mm×28.5mm
Model: C-9314P
LED indication available
Built-in current-limiting resistor
Action current≤ 30mA
Dimensions: 64.5 x 64.5 x 31.4mm

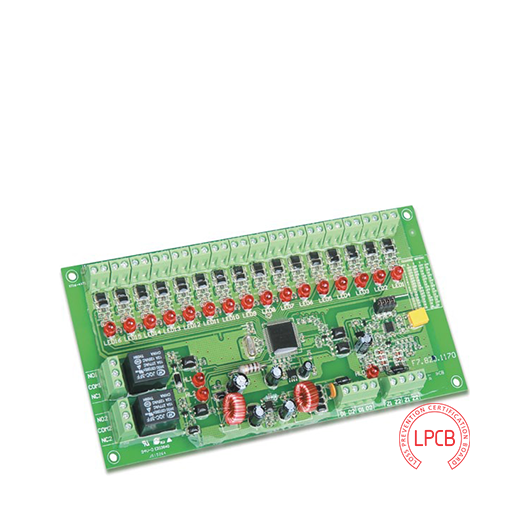

Model: DI-9309
Individual state LED for each input
Power supply monitored
2 dry contact outputs
Dimension: 200mm x 100mm x 20mm
Model: GST852RP
Back lit LCD displaying all fire information
Local sounder mute and scroll alarms buttons
Relative Humidity: 95%, non condensing
Dimension: 234mm x 104mm x 35mm

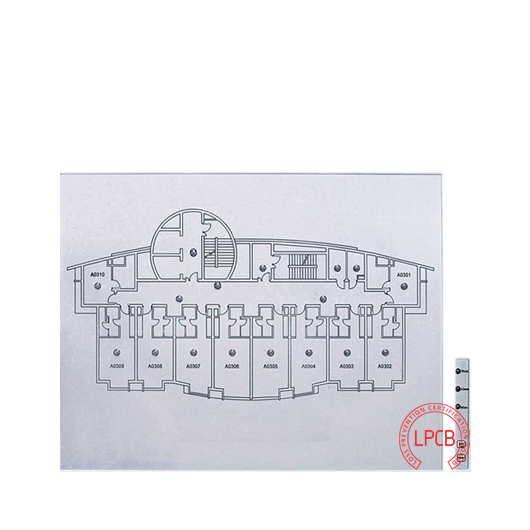

Model: GST8903
Up to 100 LED indication points
Graphical layout to project requirement
A3, A2 and A1 sizes
Relative Humidity: 95% non-condensing
Model: GST-NRP00
Provides remote control of system
Password protect access levels
Flush-mount or Surface-mount structure
Functional control of network panels
Model: P-9910B
Hand held unit, portable tool
Convenience operation
Programs all loop devices (1-242)
Low battery indication

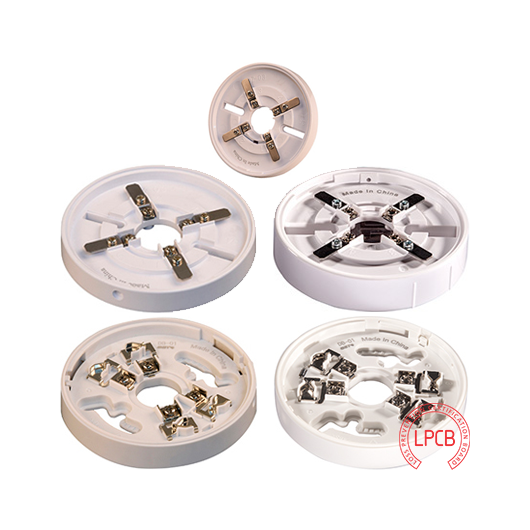

Model: DB-01, 01D, DZ-03, 03T, 03D
Suitable for DI-910xE Series Detectors
Suitable for DC-910xE series Detectors
Suitable for I-910x Series Detectors
Suitable for C-910xE series Detectors

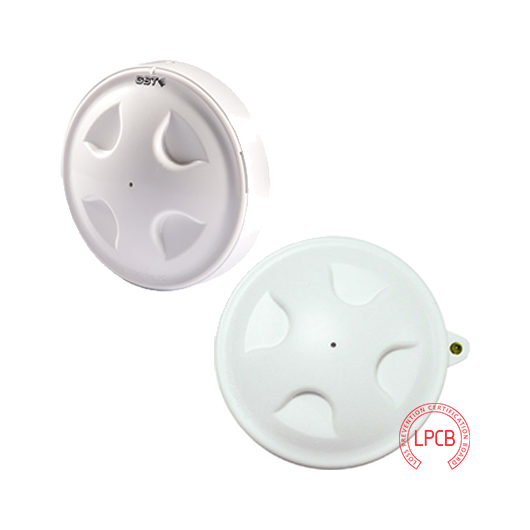

Model: DP-9907, P-9907
Co-operate with DB-01D
Enabling Line Continuity
Co-operate with DZ-03D
Suitable for DC-910x, C-910x series Detectors

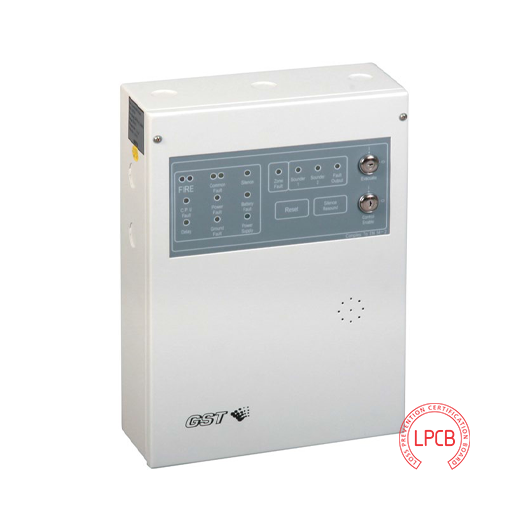

Model: GST101
Single zone conventional fire panel
Compact design
Suitable for Active line monitoring
Suitable for resistor end of line monitoring.

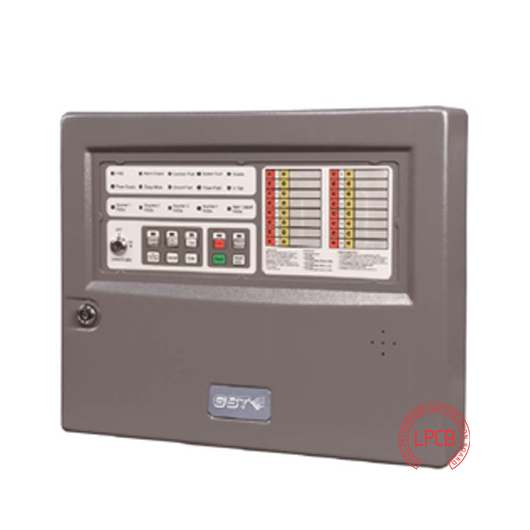

Model: GST102A/104A/108A/116A
Pleasing color and fascia design
Simplified user operation
Day/night mode selected
Zone isolate control

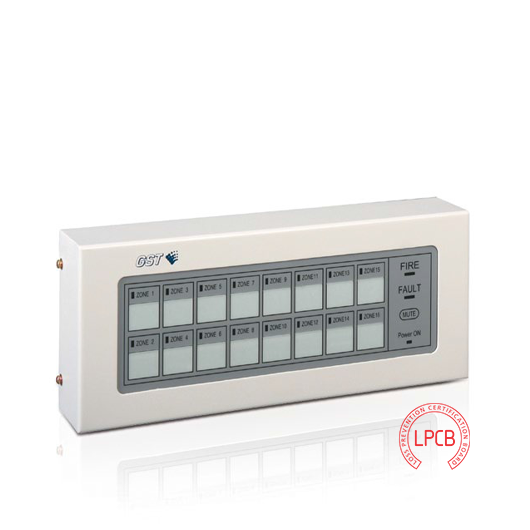

Model: DGST-RP16
Compatible with GST102A/4A/8A/16A
Powered from FACP directly
Zonal Fire and general Fault indication
Dimension: 280mm x 110mm x 46mm
Model: DC-9101E
LED for 360° vision
Reed switch testing
Remote indicator output available
Model: DC-9102E Conventional Photoelectric Smoke Detector
Reed switch testing
Remote indicator output available
2 levels sensitivities programmable

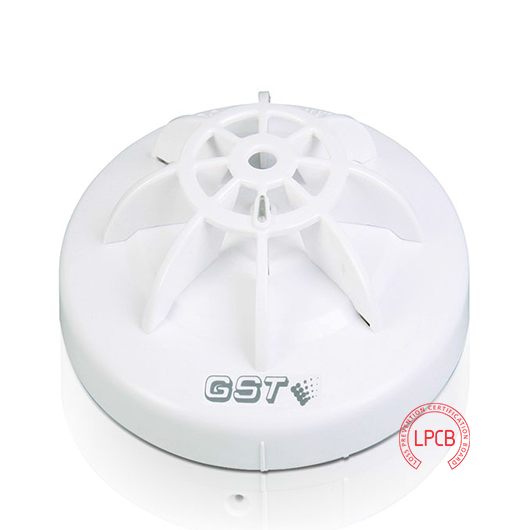

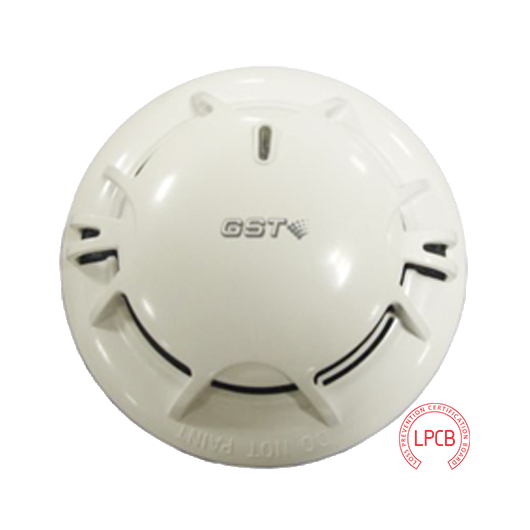

Model: DC-9103E
Featuring magnetic test
Remote indicator output available
Reed switch testing
Model: C-9104
Detects the UV rays emitted by a flame
Aesthetically pleasing low profile design
Dust, damp and corrosion-proof
Detection Angle: 80°
Model: R6601
N/O contact output
Contacts closed and self-lock
Scattering technology
Operating Voltage: 12VDC
Model: R6602
N/O contact output
Contacts closed and self-lock
Scattering technology
Operating Voltage: 12VDC

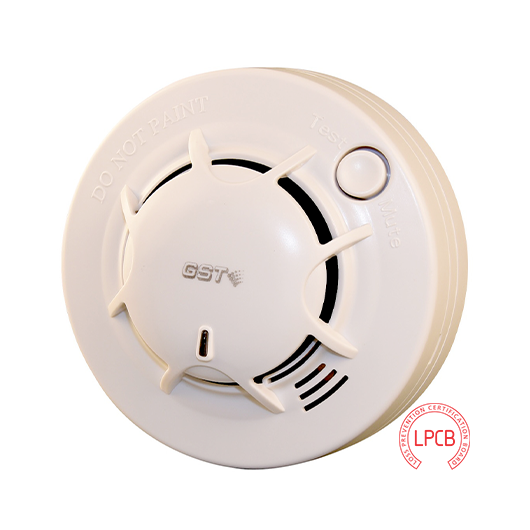

Model: S-9102R
N/O contact output
Contacts closed and self-lock
Scattering technology
Operating Voltage: 12VDC
Model: S-9102N
N/O contact output
Contacts closed and self-lock
Scattering technology
Operating Voltage: 12VDC

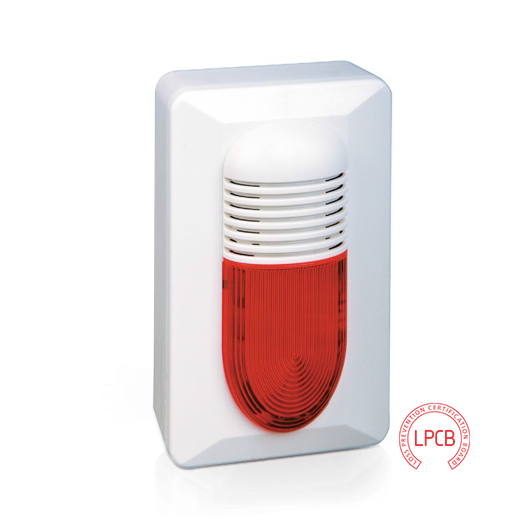

Model: C-9401
Operating Voltage: 24VDC
Standby Current≤ 10mA
Alarm Current≤ 160mA
Temperature: -10℃ ～+50℃
Model: C-9403
2 selectable tones
Optional deep base
Action Current≤ 35mA
Sounder Output≥ 95dB @ 1 Metre
Model: C-9404
Compatible with GST102A/4A/8A/16A
Powered from FACP directly
Zonal Fire and general Fault indication
Dimension: 280mm x 110mm x 46mm

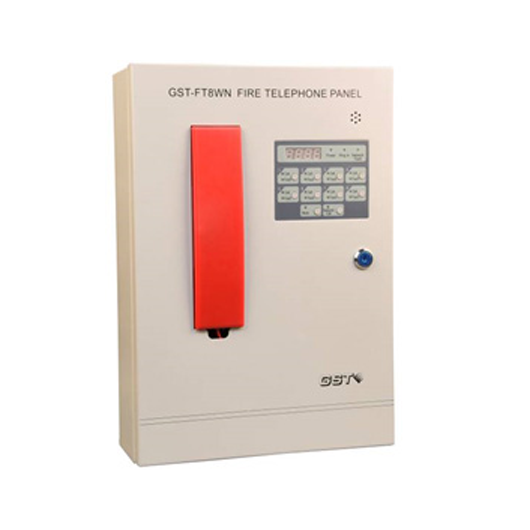

Model: GST-FT8WN
8 Zone conventional connection
2-way voice communication
Networkable fire telephone panels
Call divert to the network panels

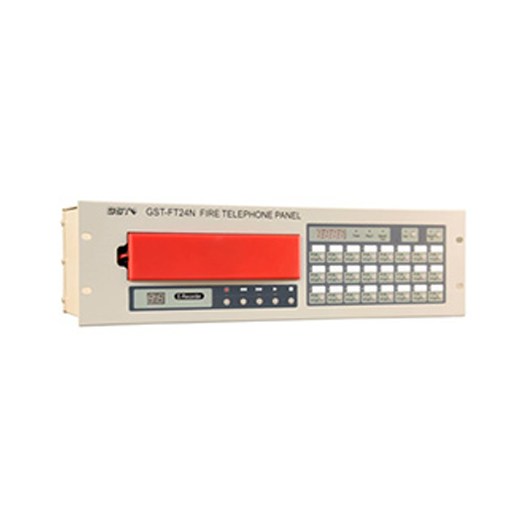

Model: GST-FT24N
24 Zone addressable fire telephone
2-way voice communication
Networkable fire telephone panels
Call divert to the network panels
Model: P-9911(F)
Fixed extension of Fire Telephone.
Open box and lift receiver to comm.
Compatible with all GST conventional fire telephone handsets in same zone.
Model: P-9911(J)
Simply insert mobile handset into jack to establish communications with the control centre.
Compatible with all GST conventional fire telephone handsets in same zone.
Model: P-9911(F)
Fixed extension of Fire Telephone
Open box and lift receiver to communication.
Compatible with all GST conventional fire telephone handsets in same zone

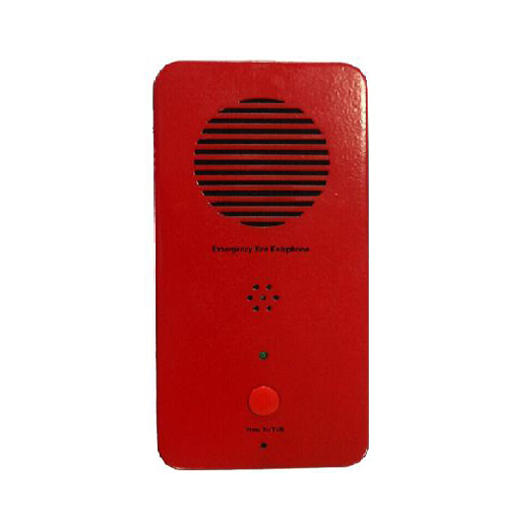

Model: P-9911(H)
Compatible with the GST- FT series of fire telephone panels, for emergency communication over a dedicated hard wired system normally located with the fire command centre.
Dimension: 160mm x 80mm x 34mm

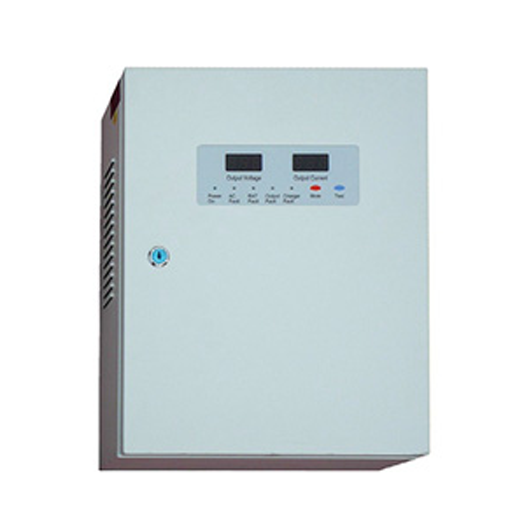

Model: PSU24-55A
24 volt DC intelligent PSU, 5 ampere version
Fully monitored with output protection
Mains supply 230VAC (+10/-15%), 50Hz
Dimension: 400mm x 318mm x 128mm
Model: PSU24-1010A
24 volt DC intelligent PSU, 5 ampere version
Fully monitored with output protection
Mains supply 110 ~ 230VAC, 50/60Hz
Dimension: 520mm x 350mm x 156mm
